Thickness Map

Thickness Map

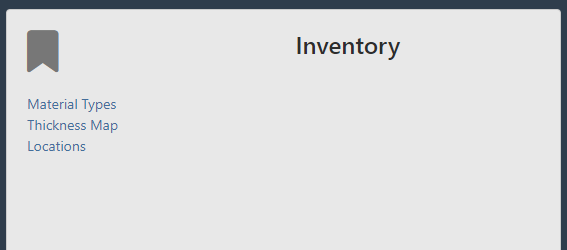

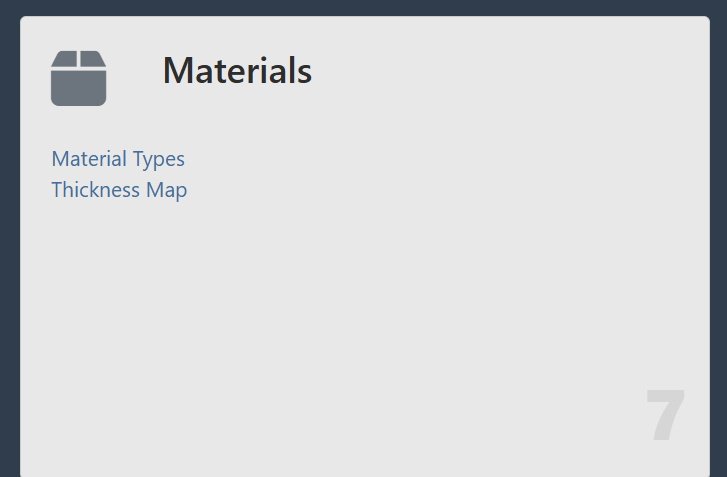

Setup > Inventory > Thickness Map



The thickness map defines the list of thicknesses available for a material grade or material group.



Thickness: Then thickness and the thickness units.
Description: The displayed value or the thickness. If no description is defined the thickness value will be displayed.
Group: The material grade or material group.

Note: The material grade will be matched first and if no match is found the material group will be matched.
